Graphical Representation of Survival - Swimmer Plots for Clinical Trials in Clinical Oncology

Author

Sophia Z. Shalhout, David M. Miller

Published

February 9, 2020

Abstract
In this post we demonstrate how to create Swimmer Plots to visualize Survival Data in R

Overview

  • This is an RMarkdown explaining how we can use “Swimmer Plots” to visualize survival data.
  • A “Swimmer Plot” is a graphical way of displaying several aspects of a subject’s tumor response such as total time to tumor response, whether there was a “Complete” or “Partial” response, and duration of response.
  • This is a clear, graphical representation of the course of a patient’s tumor response and can be an especially useful tool when reporting clinical trial data results.

Prepare the Data

Step 1, Download ggplot2, reshape2, dplyr, plotly, and grid from CRAN

  • Use the install.package() function to install the followng R packages from CRAN: ggplot2, plotly, reshape2, dplyr, kintr and grid from CRAN for example:
    install.packages("ggplot2")

Step 2, Load each relevant Package

library(ggplot2)
library(dplyr, warn.conflicts=FALSE)   # Useful for manipulating the dataframes
library(reshape2) # Reformmating dataframes
library(grid)
library(plotly) # Allows us to make the swimmer plot interactive
library(knitr)

Step 3, Create an “example” data set for demonstrative purposes

  • We will create a working data set appropriate for this type of graphical represenataion.
set.seed(35) # This sets the seed of R's random number generator
dat <-  data.frame(Subject = 1:15,
                 Months = sample(5:20, 15, replace=TRUE), # This generates a random set of months from 5 - 20
                 Treated=sample(0:1, 15, replace=TRUE), # This generates 15 random 0 or 1s which correspond to Tx or no Tx
                 Stage = sample(1:4, 15, replace=TRUE), # This randomly generates staging from 1 - 4
                 Continued=sample(0:15, 15, replace=TRUE))

View initial Data Set

dat %>% kable
Subject Months Treated Stage Continued
1 14 0 4 5
2 10 0 2 9
3 12 0 1 0
4 5 0 1 14
5 11 0 2 10
6 15 1 4 1
7 13 0 1 13
8 18 1 1 9
9 9 0 2 0
10 6 0 4 6
11 6 0 3 2
12 20 0 1 15
13 13 0 2 2
14 14 1 1 12
15 13 0 1 0

Add Response Data to Data Set

dat <-  dat %>%
  group_by(Subject) %>%
  mutate(Complete=sample(c(4:(max(Months)-1),NA), 1,
                         prob=c(rep(1, length(4:(max(Months)-1))),5), replace=TRUE),
         Partial=sample(c(4:(max(Months)-1),NA), 1,
                        prob=c(rep(1, length(4:(max(Months)-1))),5), replace=TRUE),
         Durable=sample(c(-0.5,NA), 1, replace=TRUE))
# of note, `sample()`takes a sample of the specified size from the elements of x using either with or without replacement
# Let's organize the order of the Subjects by Months
dat$Subject <-  factor(dat$Subject, levels=dat$Subject[order(dat$Months)])

Let’s view the Data Set Now

dat %>% kable
Subject Months Treated Stage Continued Complete Partial Durable
1 14 0 4 5 5 11 NA
2 10 0 2 9 NA 4 -0.5
3 12 0 1 0 5 8 -0.5
4 5 0 1 14 NA NA NA
5 11 0 2 10 5 NA -0.5
6 15 1 4 1 6 6 -0.5
7 13 0 1 13 11 10 -0.5
8 18 1 1 9 15 10 NA
9 9 0 2 0 NA 6 -0.5
10 6 0 4 6 NA NA -0.5
11 6 0 3 2 4 NA -0.5
12 20 0 1 15 11 NA NA
13 13 0 2 2 8 9 -0.5
14 14 1 1 12 13 13 NA
15 13 0 1 0 NA NA -0.5

Melt part of data frame for adding points to bars

  • This will collapse the Columns “Complete”, “Partial” and “Durable” into a new column called “variable” and the values of those orginial columns will become a new vector/column called “value”
dat.m <-  melt(dat %>% select(Subject, Months, Complete, Partial, Durable),
             id.var=c("Subject","Months"), na.rm = TRUE)
# of note, na.rm = TRUE will eliminate those rows with missing values

Let’s View our Data Set after melting

dat.m %>% kable
Subject Months variable value
1 1 14 Complete 5.0
3 3 12 Complete 5.0
5 5 11 Complete 5.0
6 6 15 Complete 6.0
7 7 13 Complete 11.0
8 8 18 Complete 15.0
11 11 6 Complete 4.0
12 12 20 Complete 11.0
13 13 13 Complete 8.0
14 14 14 Complete 13.0
16 1 14 Partial 11.0
17 2 10 Partial 4.0
18 3 12 Partial 8.0
21 6 15 Partial 6.0
22 7 13 Partial 10.0
23 8 18 Partial 10.0
24 9 9 Partial 6.0
28 13 13 Partial 9.0
29 14 14 Partial 13.0
32 2 10 Durable -0.5
33 3 12 Durable -0.5
35 5 11 Durable -0.5
36 6 15 Durable -0.5
37 7 13 Durable -0.5
39 9 9 Durable -0.5
40 10 6 Durable -0.5
41 11 6 Durable -0.5
43 13 13 Durable -0.5
45 15 13 Durable -0.5

Graph the Data using a Swimmer Plot

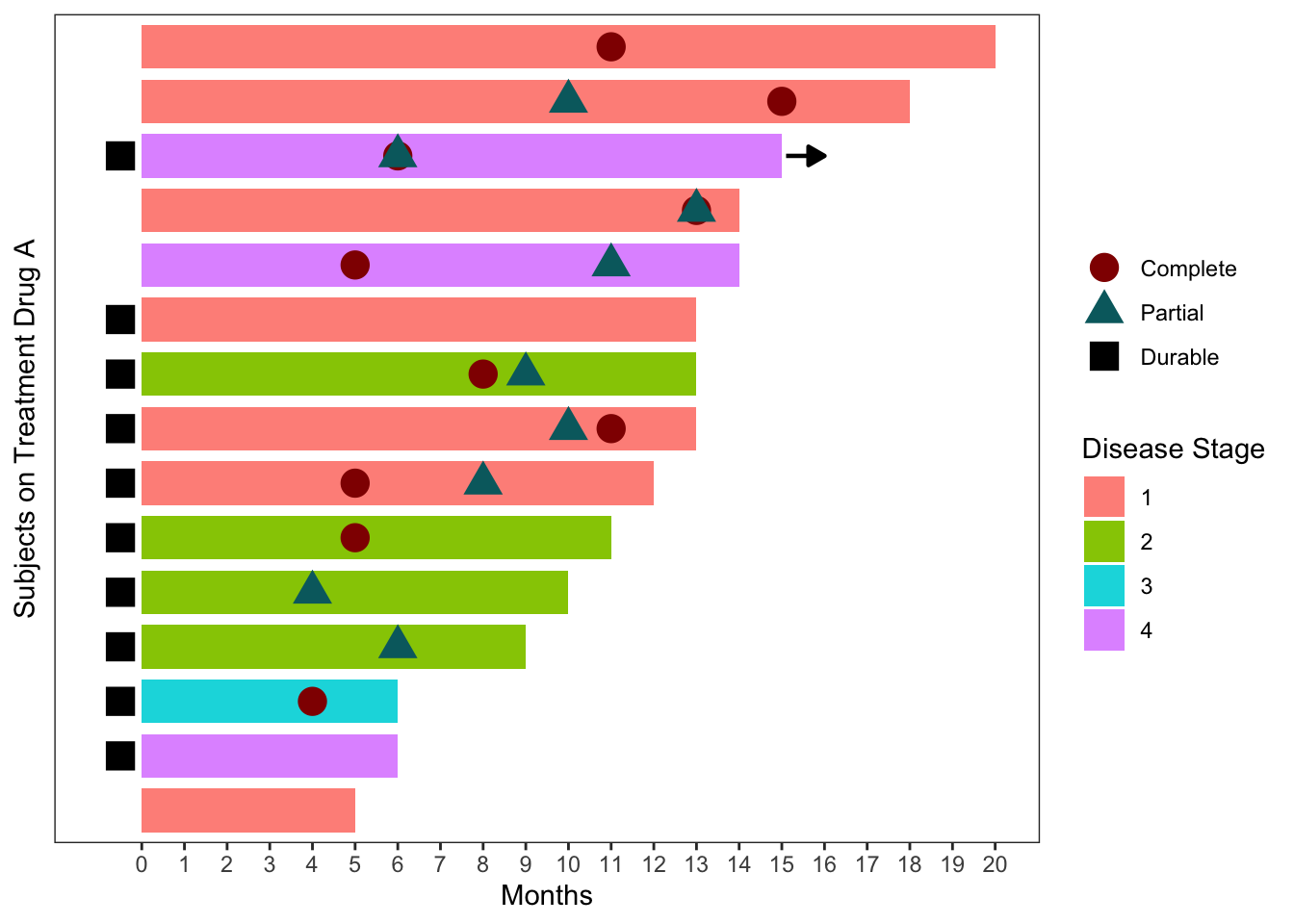

Let’s make a static swimmer plot with ggplot

a<- ggplot(dat, aes(Subject, Months)) +
  geom_bar(stat="identity", aes(fill=factor(Stage)), width=0.8) +
  geom_point(data=dat.m,
             aes(Subject, value, colour=variable, shape=variable), size=5) +
  geom_segment(data=dat %>% filter(Continued==1),
             aes(x=Subject, xend=Subject, y=Months + 0.1, yend=Months + 1),
             pch=15, size=0.8, arrow=arrow(type="closed", length=unit(0.1,"in"))) +
  coord_flip() +
  scale_fill_manual(values=hcl(seq(15,375,length.out=5)[1:4],100,75)) +
  scale_colour_manual(values=c(hcl(seq(15,375,length.out=3)[1:2],100,30),"black")) +
  scale_y_continuous(limits=c(-1,20), breaks=0:20) +
  labs(fill="Disease Stage", colour="", shape="",
       x="Subjects on Treatment Drug A") +
  theme_bw() +
  theme(panel.grid.minor=element_blank(),
        panel.grid.major=element_blank(),
        axis.text.y=element_blank(),
        axis.ticks.y=element_blank())
a

Now let’s make an Interactive Swimmer plot in Plotly by simply using the ggplotly() function of the static plot as an object

ggplotly(a)

SessionInfo

sessionInfo()
R version 4.2.0 (2022-04-22)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur/Monterey 10.16

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] grid      stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
[1] knitr_1.41         plotly_4.10.1.9000 reshape2_1.4.4     dplyr_1.0.10
[5] ggplot2_3.4.0

loaded via a namespace (and not attached):
 [1] Rcpp_1.0.9        highr_0.9         plyr_1.8.7        pillar_1.8.1
 [5] compiler_4.2.0    tools_4.2.0       digest_0.6.30     viridisLite_0.4.1
 [9] jsonlite_1.8.4    evaluate_0.18     lifecycle_1.0.3   tibble_3.1.8
[13] gtable_0.3.1      pkgconfig_2.0.3   rlang_1.0.6       cli_3.4.1
[17] DBI_1.1.3         rstudioapi_0.14   crosstalk_1.2.0   yaml_2.3.6
[21] xfun_0.35         fastmap_1.1.0     httr_1.4.4        withr_2.5.0
[25] stringr_1.5.0     generics_0.1.3    vctrs_0.5.1       htmlwidgets_1.5.4
[29] tidyselect_1.2.0  data.table_1.14.6 glue_1.6.2        R6_2.5.1
[33] fansi_1.0.3       rmarkdown_2.18    farver_2.1.1      tidyr_1.2.1
[37] purrr_0.3.5       magrittr_2.0.3    scales_1.2.1      htmltools_0.5.3
[41] assertthat_0.2.1  colorspace_2.0-3  utf8_1.2.2        stringi_1.7.8
[45] lazyeval_0.2.2    munsell_0.5.0
