FlexDashboards for Clinical and Translational Research

Author

David M. Miller, Sophia Z. Shalhout

Published

Invalid Date

Abstract
A monograph on how to create Dashboards using R via a package called flexdashboard

Key Points

  • This monograph provides a roadmap to create a FlexDashboard for Clinical and Translational Research

  • The purpose of a Dashboard is to present data in a way that enhances its interpretation

  • There are many excellent tutorials on using the package Flexdashboard to create a dashboard; however, in this monograph we aim to highlight a few pearls that we have learned along the way that we hope you’ll find useful

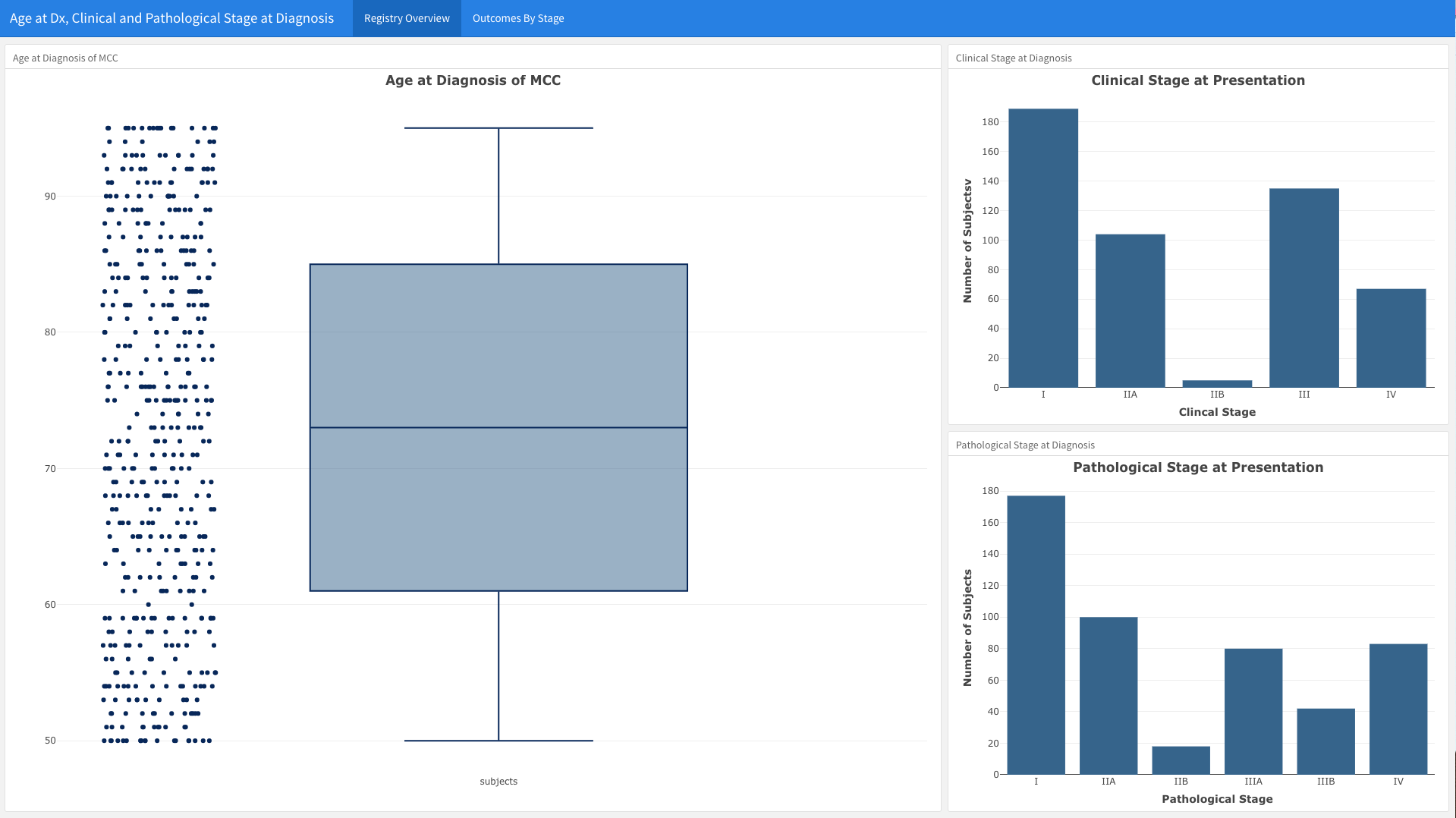

  • What we will show you next is the code we used to create the following Flexdashboard

  • Click here to see the interactive Dashboard

  • Of note, the data here is completely fabricated, any relation to real subjects is completely coincidental

  • Skill Level: Intermediate

    • Assumption made by this post is that readers will have basic familiarity with R

Load Packages

  • We will be making use of the following packages
library(flexdashboard)
library(RCurl)
library(REDCapR)
library(httr)
library(tidyverse)
library(knitr)
library(plotly)
library(readxl)
library(scales)
library(cowplot)

Overview of the Format of Flexdashboard

  • The Flexdashboard package is built around RMarkdown
  • To start, you can open a new RMarkdown by:

File -> New File -> RMarkdown

  • Then go to “From Template” on the left hand column
    • If you have installed Flexdashboard then Flexdashboard will be in the window that opens
    • Once you have selected Flexdashboard a new RMarkdown will open
    • What is specific here is the YAML
      • The content between the three dashes in beginning of the RMarkdown

Flexdashboard YAML

  • This is the YAML for the Flexdashboard

title: “Untitled”
output:
flexdashboard::flex_dashboard:
orientation: columns
vertical_layout: fill

Flexdashboard content

  • Then after the YAML, the Flexdashboard template is quite basic
  • It is broken down into three basic sections, which are designated by either hashtags or dashes

Key Structure of FLEXDASHBOARD

  • # Page (Level 1 Header)
  • ## Column vs. Tabset (Level 2 Header)
  • ### Individual Data Visualizations (Level 3 Header)

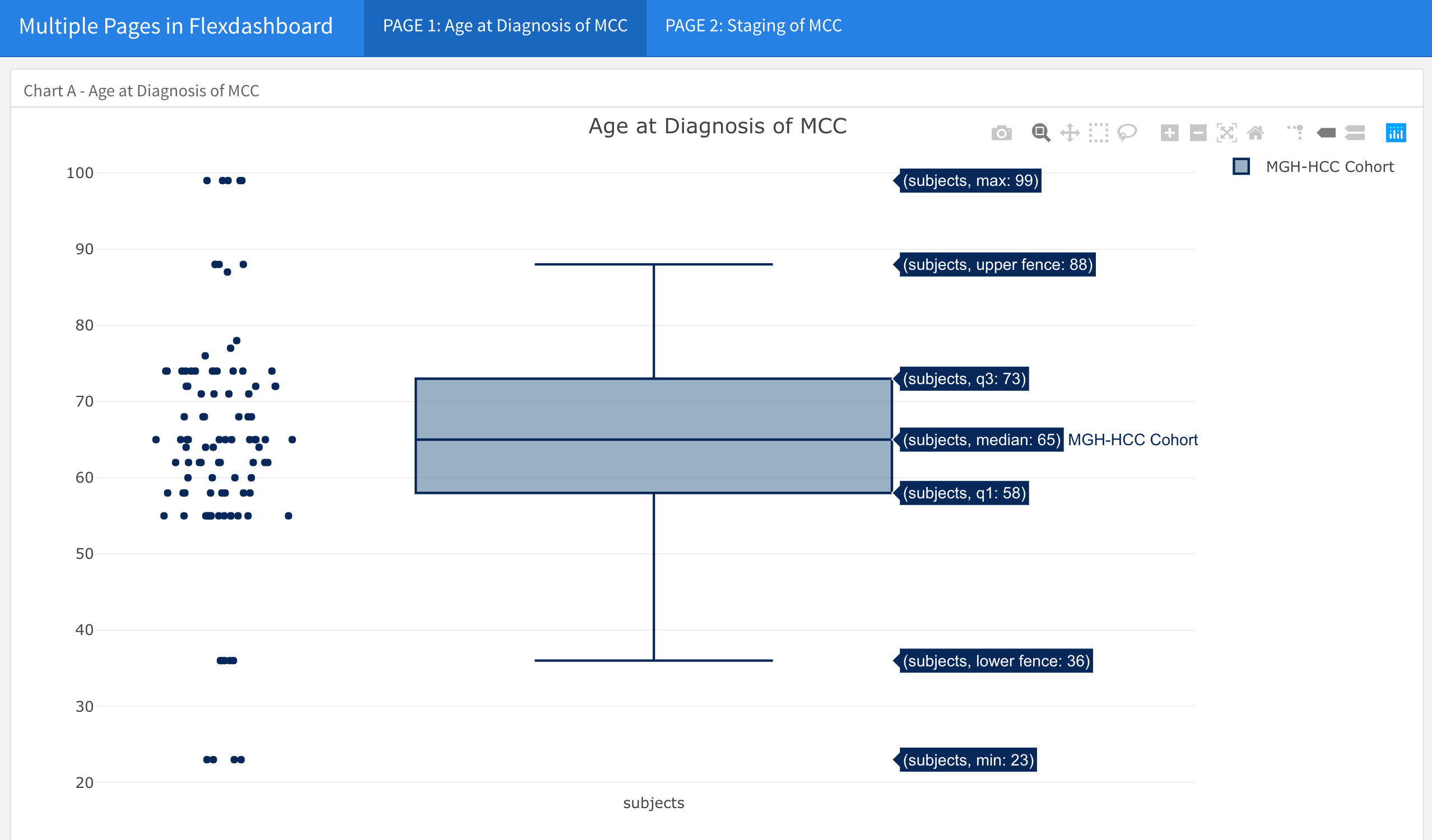

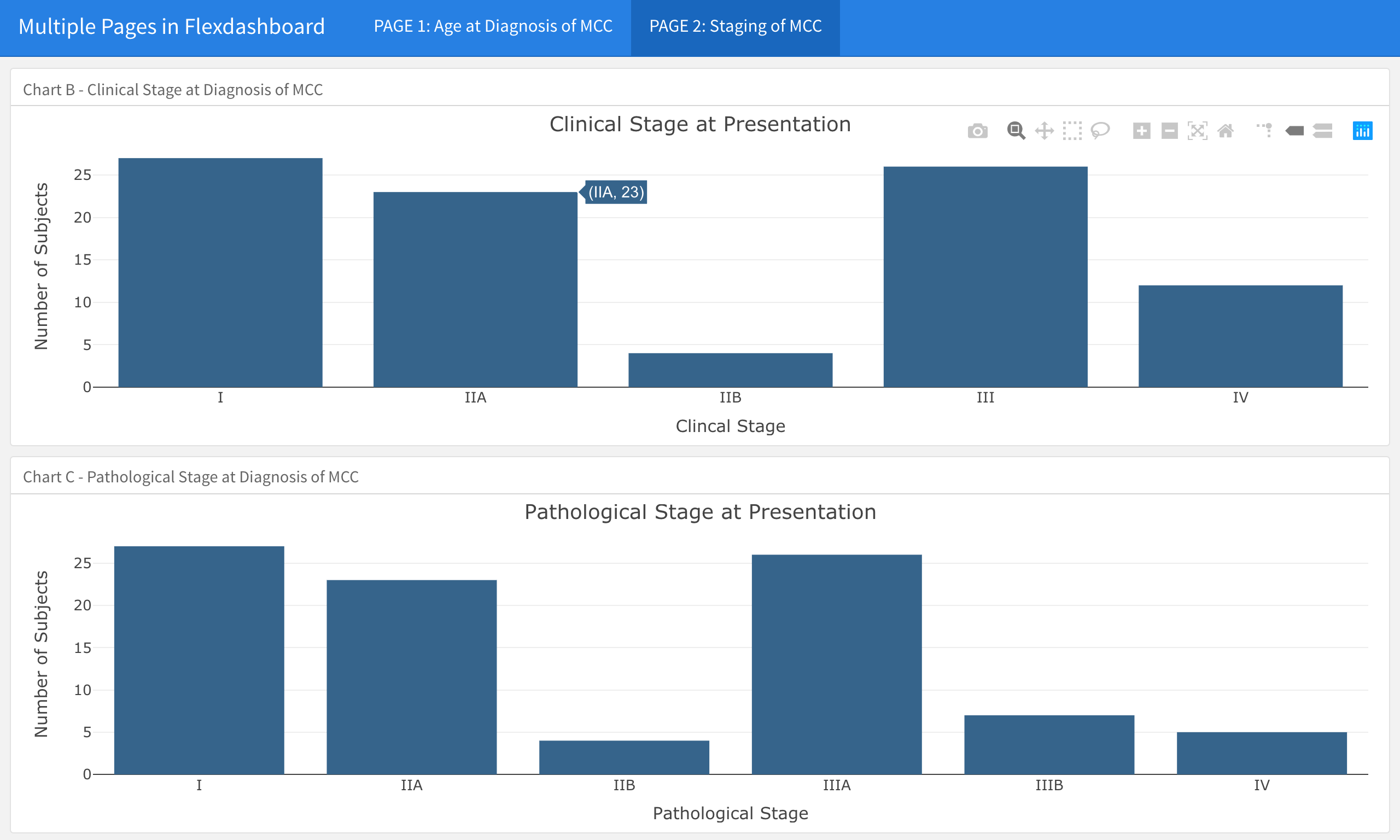

Level 1 or The “Page” designation

  • This can either be marked by a single # or by a double line ============ under the corresponding text

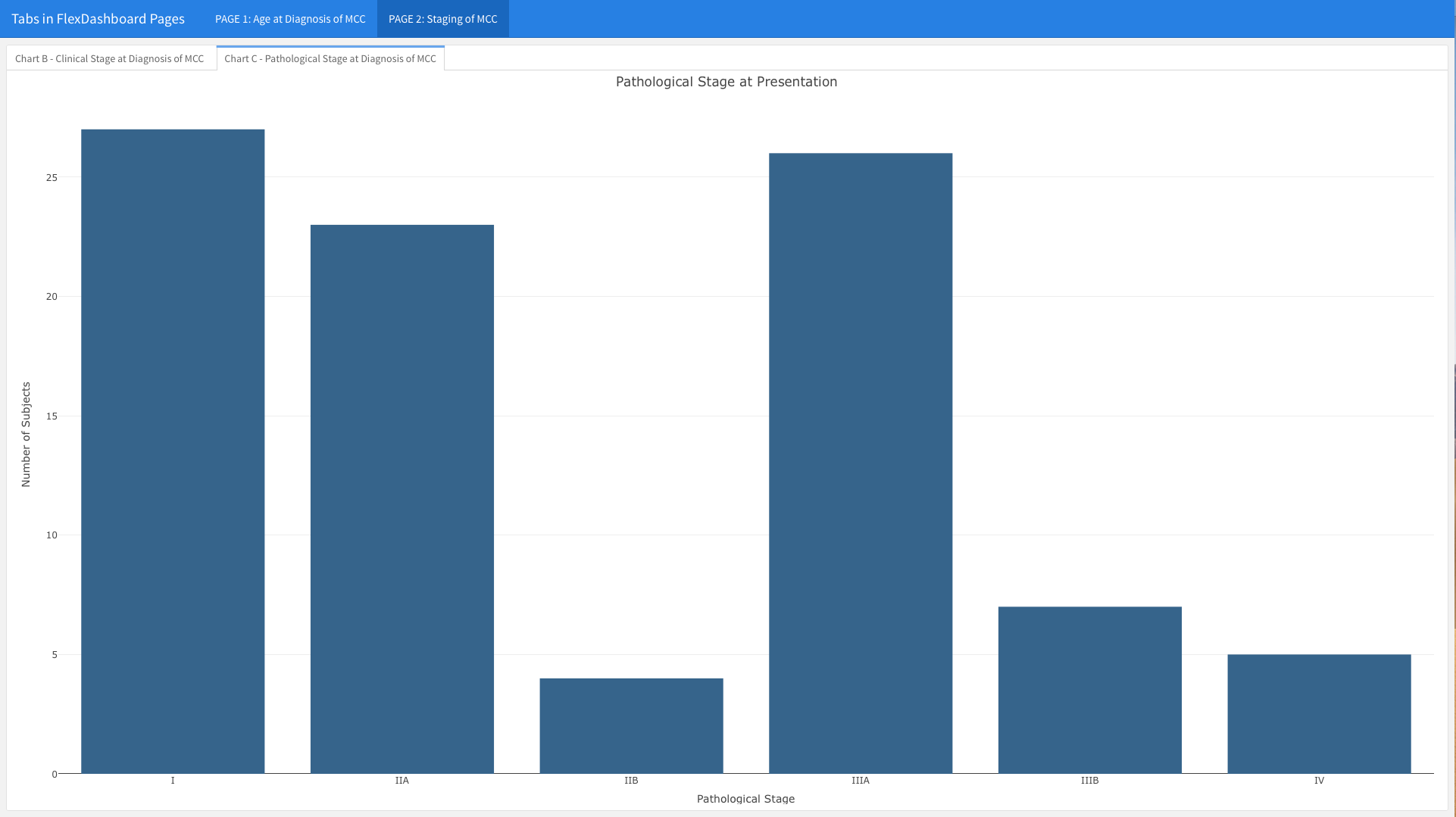

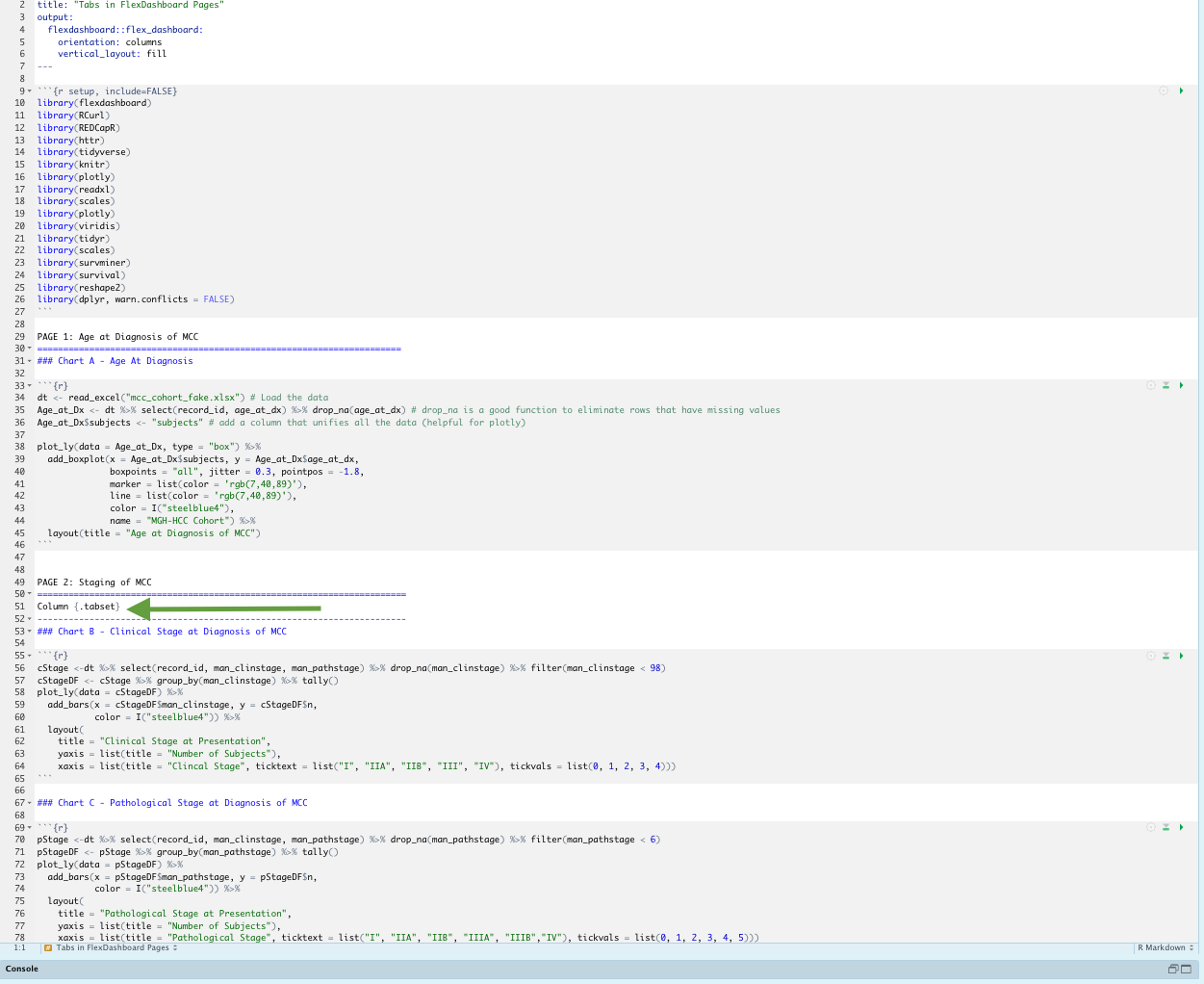

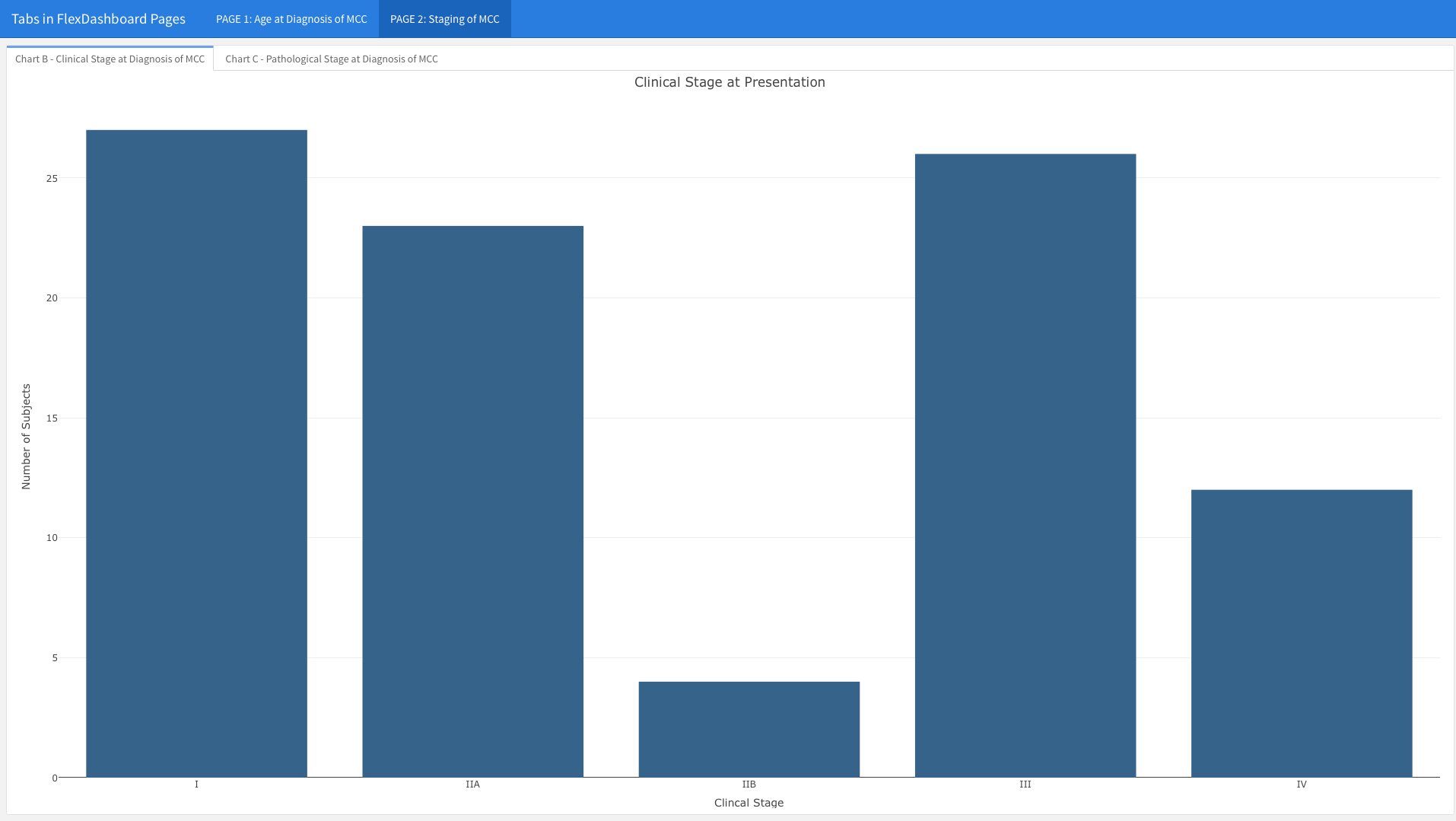

The Column vs. Tabset

  • This can be designed by two #s (##) or a single dash line ———– under the text

The Individual Data Visualizations

  • Marked by three #s (###)

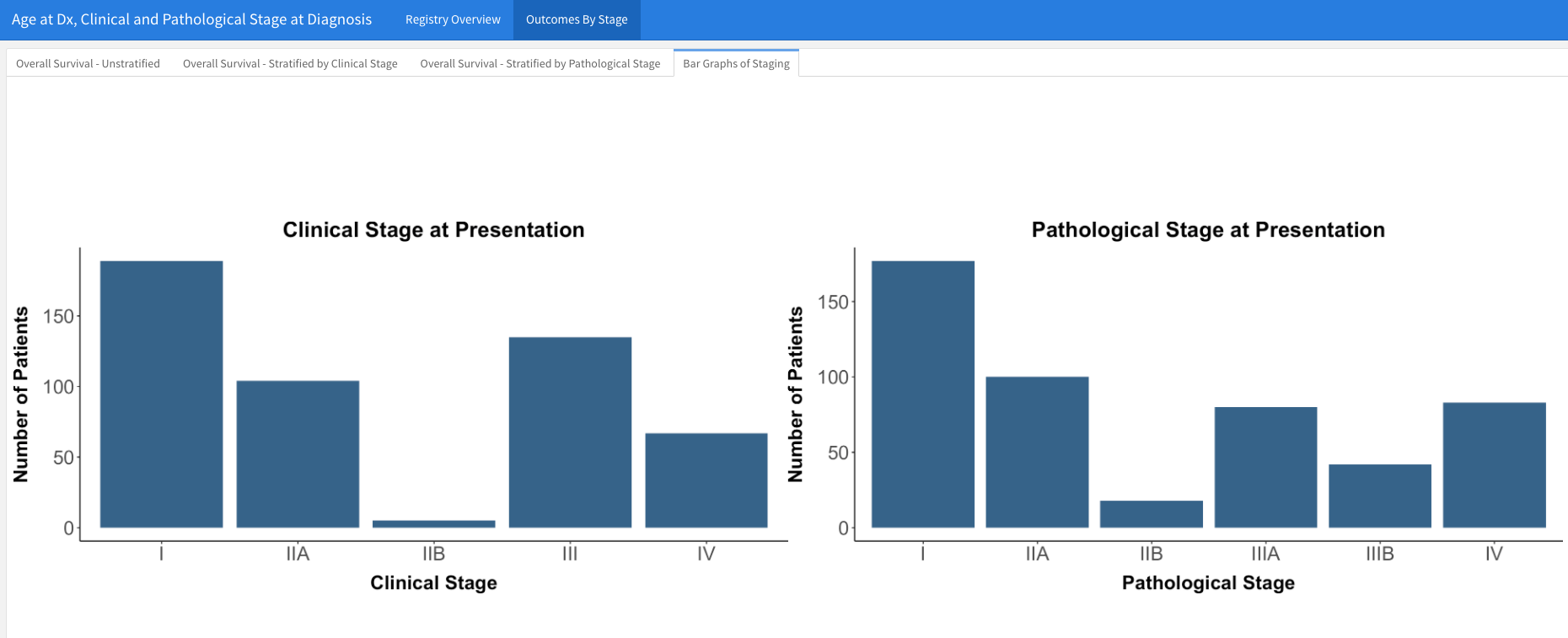

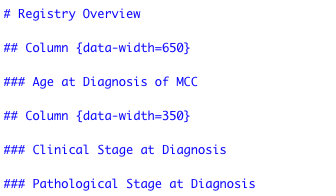

As example, using our dashboard above, we broke the first Page “Registry Overview” down into three graphs using the following structure

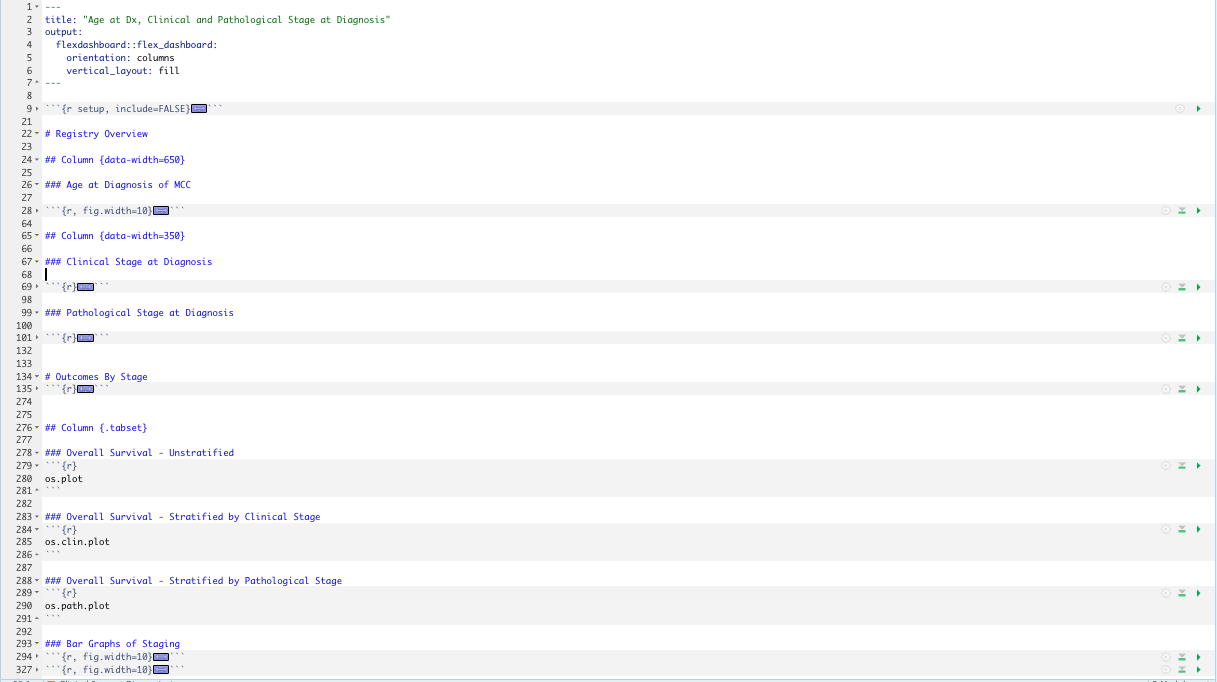

Here’s an example of what that code looks like to generate the data in the Flexdashboard

To start, let’s load the data we used

  • This is a fabricated dataset, but has many features that resemble an actual rare disease cohort dataset.
dt <- data.frame(record_id = 1:500,
                 age_at_dx = sample(50:95, size = 500, replace = TRUE),
                 man_clinstage = sample(1:5, size = 500, replace = TRUE, prob = c(0.39, 0.2, 0.01, 0.25, 0.15)),
                 man_pathstage = sample(1:6, size = 500, replace = TRUE, prob = c(0.37, 0.2, 0.03, 0.15, 0.1, 0.15)),
                 overall_survival = sample(1:3000, size = 500, replace = TRUE),
                 subject_status = sample(0:1, size = 500, replace = TRUE))

View Dataset

dt %>%
  kable %>%
  kableExtra::kable_styling(bootstrap_options = c("hover","striped"),
                            fixed_thead = T) %>%
  kableExtra::scroll_box(height = "400px",
                         width = "100%")
record_id age_at_dx man_clinstage man_pathstage overall_survival subject_status
1 67 5 2 1650 0
2 81 2 1 1724 1
3 58 2 4 617 0
4 56 2 6 2141 1
5 73 1 6 361 1
6 77 5 2 1443 1
7 58 1 1 521 1
8 75 5 5 1309 0
9 74 5 4 2892 1
10 74 2 1 1464 0
11 80 1 2 2752 0
12 65 1 2 2978 1
13 89 1 1 818 0
14 70 1 1 30 0
15 62 2 1 1760 1
16 83 1 4 2658 0
17 88 4 1 1240 0
18 73 1 4 1507 0
19 65 4 2 178 1
20 64 4 1 325 0
21 91 4 6 218 1
22 56 1 5 1281 0
23 87 2 1 160 0
24 60 2 2 1517 0
25 67 1 2 2033 1
26 62 4 6 2153 1
27 85 2 1 636 0
28 81 1 2 890 0
29 51 4 2 509 0
30 84 1 2 2208 0
31 74 2 2 1961 1
32 71 2 1 744 0
33 64 2 4 1264 1
34 63 2 1 1900 0
35 51 5 6 894 0
36 51 2 2 1255 0
37 89 2 1 722 1
38 68 5 6 2883 1
39 59 1 1 148 1
40 93 2 5 2541 1
41 57 1 6 248 1
42 83 4 1 662 1
43 52 3 1 790 0
44 57 2 5 2063 0
45 89 2 1 1636 0
46 72 4 1 2915 0
47 88 1 6 966 0
48 62 4 1 378 1
49 57 1 6 37 1
50 58 4 1 83 1
51 61 1 2 2395 0
52 82 1 3 311 1
53 51 2 1 1564 0
54 82 4 2 2871 0
55 61 4 1 2418 1
56 85 1 4 2673 1
57 83 1 1 719 0
58 83 1 6 399 0
59 56 2 1 2304 1
60 64 1 2 1091 1
61 80 1 1 2237 1
62 62 1 1 2742 0
63 95 4 1 85 1
64 86 1 2 1222 1
65 85 5 3 588 0
66 62 4 6 127 0
67 88 1 1 1377 0
68 55 2 2 1486 1
69 58 1 5 1078 1
70 73 1 1 2829 0
71 63 5 1 2540 0
72 74 1 2 799 0
73 94 5 3 1796 0
74 66 5 5 2509 0
75 51 4 1 1708 1
76 50 4 1 1684 0
77 59 2 1 91 1
78 57 4 1 877 0
79 94 2 4 397 0
80 56 1 6 400 1
81 83 1 6 1874 1
82 50 1 4 338 1
83 66 1 1 1884 1
84 86 1 2 2689 0
85 67 4 4 2612 0
86 87 5 1 2895 0
87 82 1 5 2175 1
88 91 1 1 2593 0
89 84 4 1 1690 0
90 50 2 4 2363 0
91 58 4 1 1022 0
92 76 5 2 397 0
93 90 5 6 480 1
94 95 1 2 1848 1
95 52 1 6 878 0
96 83 1 6 2371 0
97 69 5 2 2810 1
98 58 1 1 1345 0
99 91 1 6 1434 1
100 94 4 2 456 1
101 73 1 2 2243 0
102 78 1 4 1750 0
103 54 1 1 131 1
104 57 4 6 1054 0
105 54 1 6 1924 0
106 51 1 1 1429 1
107 59 5 2 2768 0
108 69 5 1 81 1
109 59 4 6 609 0
110 70 2 4 289 0
111 95 4 6 122 1
112 53 4 1 215 1
113 64 1 6 266 1
114 91 1 2 434 1
115 92 1 1 1912 1
116 67 4 4 1858 0
117 71 2 6 88 0
118 73 1 5 2178 1
119 69 1 1 1957 1
120 52 2 5 1307 1
121 95 1 1 2600 0
122 64 5 2 614 0
123 88 5 5 929 0
124 59 5 1 523 0
125 77 2 1 1540 1
126 61 1 3 1859 0
127 88 2 1 2455 0
128 58 2 6 2139 1
129 88 4 2 2834 0
130 69 5 6 481 0
131 89 1 6 1789 1
132 88 4 1 803 0
133 81 4 1 1840 0
134 52 1 5 1513 1
135 91 4 1 1219 1
136 88 1 1 873 1
137 62 2 2 894 1
138 82 1 2 59 0
139 81 1 2 1327 0
140 94 1 2 1000 0
141 90 5 2 121 1
142 65 1 6 367 0
143 76 2 1 2375 0
144 92 2 1 2755 0
145 51 1 5 520 1
146 86 2 1 525 0
147 84 5 4 606 1
148 71 1 2 967 0
149 82 1 1 678 0
150 59 1 1 861 1
151 95 1 2 609 0
152 67 5 1 575 0
153 71 4 1 2065 0
154 54 3 4 903 0
155 84 3 5 963 0
156 85 1 2 1288 1
157 86 4 1 2618 0
158 92 4 2 1470 0
159 81 2 3 1888 1
160 76 5 1 2765 0
161 80 1 5 1225 0
162 78 4 2 1212 1
163 60 4 1 923 1
164 90 1 2 1238 1
165 67 5 2 486 0
166 55 1 4 1365 1
167 85 2 2 103 0
168 76 4 6 1805 1
169 61 2 4 2732 1
170 51 2 1 2652 0
171 82 2 4 1226 1
172 86 5 3 1218 0
173 72 1 2 596 1
174 71 1 5 759 1
175 50 2 4 1668 0
176 52 4 5 2506 0
177 60 2 2 71 0
178 70 2 2 2071 0
179 70 1 3 1671 1
180 77 2 2 1839 0
181 61 1 4 2462 0
182 85 5 1 472 0
183 59 4 2 2035 1
184 72 1 2 1598 1
185 67 1 2 1433 1
186 55 1 6 1882 0
187 93 4 6 97 0
188 93 1 1 2437 0
189 95 2 1 1410 0
190 76 2 1 2406 1
191 57 1 2 2132 0
192 73 4 1 1372 0
193 63 5 1 2066 1
194 88 1 1 2326 0
195 80 1 3 836 0
196 86 1 2 644 1
197 89 1 4 2211 1
198 70 1 6 1057 0
199 92 4 5 2222 1
200 78 4 4 400 0
201 51 1 4 2683 0
202 68 4 1 1457 0
203 68 4 1 1014 0
204 61 4 5 1129 1
205 89 2 4 1163 0
206 89 1 1 23 0
207 61 1 1 883 0
208 83 5 1 2765 1
209 56 2 6 2523 1
210 61 1 5 5 0
211 50 5 1 2191 0
212 57 1 4 1306 0
213 67 5 1 1081 0
214 64 1 5 2089 1
215 59 5 1 759 1
216 69 1 2 1381 0
217 81 4 4 1417 1
218 95 5 1 1489 1
219 76 3 1 739 1
220 56 2 2 336 1
221 58 2 5 1164 1
222 64 5 2 690 1
223 63 1 2 1539 0
224 70 2 4 215 1
225 78 2 2 2107 0
226 55 4 1 1052 0
227 61 1 6 2444 0
228 56 1 6 2232 1
229 92 1 1 823 1
230 84 1 6 1369 0
231 75 5 2 2042 1
232 69 1 4 1586 0
233 88 5 5 2672 1
234 50 2 1 2355 1
235 95 1 1 2354 1
236 79 2 1 2065 1
237 91 5 1 578 0
238 87 4 6 878 0
239 67 5 2 99 0
240 63 1 1 1555 0
241 72 4 5 1421 1
242 94 1 5 1139 1
243 90 4 2 2843 1
244 89 1 2 622 0
245 58 2 5 2302 0
246 90 5 1 1163 0
247 84 4 1 2598 1
248 52 4 1 1763 0
249 59 5 4 1110 0
250 88 1 4 582 0
251 56 1 1 732 0
252 66 5 5 140 1
253 94 4 1 821 1
254 91 1 6 903 0
255 54 4 5 2199 0
256 61 2 1 1450 1
257 74 1 2 2495 0
258 84 1 1 840 1
259 53 4 1 2885 1
260 84 1 4 2831 1
261 54 1 1 1312 0
262 63 5 2 1867 1
263 89 2 2 2637 0
264 57 1 1 1247 1
265 89 1 4 1689 0
266 58 2 6 498 0
267 51 1 2 114 0
268 78 4 5 546 1
269 71 1 1 2928 1
270 77 4 5 2592 0
271 92 4 2 2349 1
272 83 2 4 1526 1
273 52 2 1 452 0
274 65 2 3 2892 0
275 89 1 2 2759 1
276 86 4 1 892 0
277 78 5 2 1466 0
278 85 4 5 5 0
279 89 4 4 1092 0
280 71 5 6 1378 0
281 60 1 4 2822 1
282 87 3 5 1399 1
283 56 4 2 2355 1
284 89 4 2 2106 0
285 76 4 4 826 1
286 91 1 1 663 0
287 86 2 6 1922 1
288 79 1 5 2848 1
289 88 1 1 2539 1
290 82 1 2 782 0
291 62 1 2 535 1
292 89 4 1 502 0
293 91 4 3 1448 0
294 53 4 1 1044 0
295 84 1 6 891 1
296 80 1 2 2000 1
297 77 1 1 190 1
298 53 1 3 2659 1
299 59 5 6 1311 0
300 72 2 5 1205 0
301 89 2 4 2751 0
302 82 1 6 2518 1
303 73 1 1 1964 1
304 54 1 6 1484 1
305 85 5 1 2694 1
306 85 4 3 2902 1
307 74 5 1 5 0
308 58 2 1 2570 0
309 79 5 1 724 1
310 85 2 5 1142 1
311 86 1 1 868 0
312 62 4 5 1678 1
313 66 1 1 2948 1
314 72 5 2 2049 1
315 60 2 1 1100 0
316 71 1 5 373 1
317 92 1 6 1122 0
318 68 4 5 1150 1
319 59 1 6 2251 0
320 54 1 1 2165 0
321 58 4 4 1328 0
322 95 5 6 781 0
323 84 5 1 2013 0
324 87 5 6 1266 1
325 52 1 2 1473 1
326 71 5 6 272 0
327 91 4 3 2845 1
328 62 1 1 2525 1
329 50 4 1 1455 1
330 51 1 2 2455 1
331 57 1 3 2914 1
332 83 4 4 751 1
333 91 1 4 133 0
334 86 1 4 2502 0
335 76 4 1 164 1
336 92 1 1 1959 1
337 93 1 4 1467 0
338 53 5 6 1067 0
339 83 1 6 2599 0
340 93 4 4 2234 1
341 92 1 4 2052 1
342 88 2 3 2758 0
343 81 1 2 1565 1
344 90 5 1 827 1
345 65 4 1 2765 0
346 68 1 5 832 1
347 53 1 1 2361 0
348 72 4 1 777 1
349 63 4 4 2461 1
350 90 4 2 1841 1
351 76 5 6 874 1
352 85 1 5 664 1
353 71 1 1 2262 0
354 57 2 3 2685 1
355 82 4 2 2930 0
356 58 4 2 2660 0
357 75 4 1 2400 0
358 63 5 1 855 0
359 86 5 6 1574 1
360 59 1 6 1446 0
361 81 1 6 1633 1
362 88 1 5 2493 0
363 69 1 4 1998 0
364 83 2 6 1183 0
365 50 1 1 603 1
366 67 5 1 2626 1
367 59 4 2 954 0
368 63 1 4 2019 1
369 62 1 1 2113 0
370 91 5 4 776 0
371 52 1 3 2810 1
372 73 1 6 1818 0
373 66 1 1 306 0
374 59 4 2 1163 0
375 67 5 3 1917 0
376 72 1 1 81 0
377 50 2 2 1830 0
378 75 5 4 2694 0
379 82 1 3 178 0
380 95 1 4 1584 0
381 72 1 6 1685 0
382 56 4 1 739 0
383 87 5 1 1894 1
384 86 1 1 2480 1
385 60 1 2 361 0
386 65 1 6 1700 0
387 83 1 1 2243 1
388 66 3 4 2453 1
389 51 5 4 1637 1
390 57 2 1 2227 0
391 72 5 1 136 1
392 67 5 4 2786 1
393 91 2 4 2501 0
394 88 5 6 655 0
395 82 1 2 2513 1
396 70 1 1 1113 1
397 76 2 4 251 0
398 54 1 1 1651 0
399 85 2 4 2259 0
400 54 2 2 1588 1
401 52 1 1 1490 1
402 62 2 6 378 0
403 63 5 6 492 0
404 75 1 5 2332 1
405 54 4 1 1485 1
406 58 1 5 387 0
407 86 1 2 785 1
408 87 1 5 1822 1
409 51 4 4 2148 0
410 50 5 6 726 1
411 89 1 5 2128 0
412 88 4 3 1832 0
413 90 4 1 574 0
414 77 5 2 1319 1
415 74 1 2 1765 0
416 88 5 1 2690 0
417 71 5 6 2069 1
418 60 5 2 1174 1
419 59 2 1 819 1
420 59 2 6 1751 1
421 60 4 4 918 1
422 55 1 3 2041 0
423 94 4 5 1888 1
424 75 5 4 411 0
425 93 4 4 103 1
426 55 1 6 1863 0
427 51 4 1 2489 0
428 87 5 1 993 0
429 84 5 6 1935 1
430 76 1 4 1429 1
431 81 4 6 1468 1
432 70 2 4 2866 1
433 86 4 2 1116 0
434 82 5 1 93 0
435 83 1 4 1967 1
436 73 1 6 1308 0
437 92 2 1 2506 0
438 56 2 4 1504 0
439 82 5 2 316 0
440 93 1 4 337 0
441 62 4 1 1648 0
442 94 5 2 1192 0
443 59 1 2 2264 1
444 82 1 2 1516 0
445 87 1 6 2066 0
446 81 1 3 337 0
447 56 2 4 1291 0
448 81 3 1 1227 1
449 54 2 6 2650 1
450 74 1 6 2108 1
451 66 1 5 2721 0
452 54 4 2 431 1
453 53 4 4 1143 1
454 81 5 1 2294 1
455 85 4 1 553 0
456 62 1 1 2816 0
457 66 4 1 510 0
458 71 2 1 2938 0
459 74 2 4 2000 0
460 58 4 4 19 0
461 95 4 6 2359 1
462 50 1 4 587 1
463 81 1 1 437 0
464 77 1 6 2749 0
465 72 5 1 1783 0
466 84 1 1 276 1
467 70 4 1 389 1
468 67 1 2 2902 1
469 71 2 2 1837 0
470 79 4 2 2114 1
471 94 2 1 2840 1
472 60 1 4 1474 1
473 73 2 2 2402 0
474 85 2 1 1903 0
475 77 4 4 2308 0
476 73 1 2 339 0
477 57 5 2 1480 0
478 84 2 5 2113 1
479 59 4 1 2093 0
480 95 4 1 298 1
481 64 5 1 2962 0
482 91 4 5 2984 1
483 88 1 5 537 1
484 65 5 6 2975 0
485 69 1 2 2043 0
486 66 1 1 326 1
487 52 5 1 533 1
488 51 5 1 4 0
489 85 1 1 2674 0
490 65 2 1 2303 0
491 58 1 6 1054 0
492 53 5 6 2206 1
493 80 2 5 1302 0
494 87 5 1 623 1
495 65 4 2 2999 0
496 62 2 1 1666 0
497 51 1 6 2254 1
498 91 1 4 2138 1
499 50 4 2 1579 0
500 74 4 4 1444 0

`# Registry Overview

`## Column {data-width=650}

`### Age at Diagnosis of MCC

dt$subjects <- "subjects" # add a column that unifies all the data (helpful for plotly)
# graph

# Create hover Text
a <- paste("<b>Record ID:</b> ", dt$record_id)
b <- paste("<b>Age at Diagnosis: </b>", dt$age_at_dx)

dt$hover <- paste(a, b, sep = "<br>")

plot_ly(data = dt, type = "box") %>%
  add_boxplot(x = dt$subjects,
              y = dt$age_at_dx,
              boxpoints = "all",
              jitter = 0.3,
              pointpos = -1.8,
              marker = list(color = 'rgb(7,40,89)'),
              line = list(color = 'rgb(7,40,89)'),
              color = I("steelblue4")
              ) %>%
  layout(title = "<b>Age at Diagnosis of MCC</b>") %>%
  layout(showlegend = FALSE)  %>%
  layout(
    hoverlabel = list(font=list(size=20))
  )

Age_at_Dx <- dt %>%
  select(record_id, age_at_dx) %>%
  drop_na(age_at_dx) # drop_na is a good function to eliminate rows that have missing values

Age_at_Dx$subjects <- "subjects" # add a column that unifies all the data (helpful for plotly)

Age_at_Dx %>% kable
plot_ly(data = Age_at_Dx, type = "box") %>%
  add_boxplot(x = Age_at_Dx$subjects, y = Age_at_Dx$age_at_dx,
              boxpoints = "all", jitter = 0.3, pointpos = -1.8,
              marker = list(color = 'rgb(7,40,89)'),
              line = list(color = 'rgb(7,40,89)'),
              color = I("steelblue4"),
              name = "MGH-HCC Cohort") %>%
  layout(title = "Age at Diagnosis of MCC")

`## Column {data-width=350}

`### Clinical Stage at Diagnosis

cStageDF <- dt %>%
  group_by(man_clinstage) %>%
  tally()

cStageDF$stage <- c("I","IIA","IIB","III","IV")

# Create hover Text
a <- paste("<b>Clincal Stage:</b> ", cStageDF$stage)
b <- paste("<b>Number of Subjects: </b>", cStageDF$n)

cStageDF$hover <- paste(a, b, sep = "<br>")

cStage.plot <- plot_ly(data = cStageDF) %>%
  add_bars(x = cStageDF$man_clinstage,
           y = cStageDF$n,
           color = I("steelblue4"),
           text = cStageDF$hover,
           hovertemplate = "%{text}<extra></extra>") %>%
  layout(
    title = "<b>Clinical Stage at Presentation</b>",
    yaxis = list(title = "<b>Number of Subjectsv"),
    xaxis = list(title = "<b>Clincal Stage</b>",
                 ticktext = list("I", "IIA", "IIB", "III", "IV"),
                 tickvals = list(1, 2, 3, 4, 5)))

cStage.plot

`### Pathological Stage at Diagnosis

pStage <-dt %>% select(record_id,
                       man_pathstage)


pStageDF <- pStage %>%
  group_by(man_pathstage) %>%
  tally()

pStageDF$stage <- c("I","IIA","IIB","IIIA","IIIB", "IV")

# Create hover Text
a <- paste("<b>Pathological Stage:</b> ", pStageDF$stage)
b <- paste("<b>Number of Subjects: </b>", pStageDF$n)

pStageDF$hover <- paste(a, b, sep = "<br>")

pStage.plot <- plot_ly(data = pStageDF) %>%
  add_bars(x = pStageDF$man_pathstage, y = pStageDF$n,
           color = I("steelblue4"),
           text = pStageDF$hover,
           hovertemplate = "%{text}<extra></extra>") %>%
  layout(
    title = "<b>Pathological Stage at Presentation</b>",
    yaxis = list(title = "<b>Number of Subjects</b>"),
    xaxis = list(title = "<b>Pathological Stage</b>",
                 ticktext = list("I", "IIA", "IIB", "IIIA", "IIIB","IV"),
                 tickvals = list(1, 2, 3, 4, 5, 6)))

pStage.plot


This is what that RMarkdown looks like with the FlexDashbaord Template

Additional FlexDashboard Formatting to Enhance the User Experience (UX)

Adding Pages to A FlexDashboard

  • If you have numerous data visualizations in your dataset that you want to include in your FlexDashboard, dividing the dashboard into multiple pages can improve the overall UX
  • Each page is defined by a level 1 markdown header, (#), and will have an individual navigation tab
    • For example, in the data shown above, we may want to have the Age of Diagnosis of MCC boxplot on a page by itself, and the Clinical and Pathological Staging bar charts on a second page in the dashboard.

`# PAGE 1: Age at Diagnosis of MCC

### Chart A - Age at Diagnosis of MCC

dt <- read_excel("mcc_cohort_fake.xlsx") # Load the data
Age_at_Dx <- dt %>% select(record_id, age_at_dx) %>% drop_na(age_at_dx) # drop_na is a good function to eliminate rows that have missing values
Age_at_Dx$subjects <- "subjects" # add a column that unifies all the data (helpful for plotly)
Age_at_Dx %>% kable
plot_ly(data = Age_at_Dx, type = "box") %>%
  add_boxplot(x = Age_at_Dx$subjects, y = Age_at_Dx$age_at_dx,
              boxpoints = "all", jitter = 0.3, pointpos = -1.8,
              marker = list(color = 'rgb(7,40,89)'),
              line = list(color = 'rgb(7,40,89)'),
              color = I("steelblue4"),
              name = "MGH-HCC Cohort") %>%
  layout(title = "Age at Diagnosis of MCC")

`# PAGE 2: Staging of MCC

`## Column {data-width=350}

### Chart B - Clinical Stage at Diagnosis of MCC

cStage <-dt %>% select(record_id, man_clinstage, man_pathstage) %>% drop_na(man_clinstage) %>% filter(man_clinstage < 98)
cStageDF <- cStage %>% group_by(man_clinstage) %>% tally()
plot_ly(data = cStageDF) %>%
  add_bars(x = cStageDF$man_clinstage, y = cStageDF$n,
           color = I("steelblue4")) %>%
  layout(
    title = "Clinical Stage at Presentation",
    yaxis = list(title = "Number of Subjects"),
    xaxis = list(title = "Clincal Stage", ticktext = list("I", "IIA", "IIB", "III", "IV"), tickvals = list(0, 1, 2, 3, 4)))

### Chart C - Pathological Stage at Diagnosis of MCC

pStage <-dt %>% select(record_id, man_clinstage, man_pathstage) %>% drop_na(man_pathstage) %>% filter(man_pathstage < 6)
pStageDF <- pStage %>% group_by(man_pathstage) %>% tally()
plot_ly(data = pStageDF) %>%
  add_bars(x = pStageDF$man_pathstage, y = pStageDF$n,
           color = I("steelblue4")) %>%
  layout(
    title = "Pathological Stage at Presentation",
    yaxis = list(title = "Number of Subjects"),
    xaxis = list(title = "Pathological Stage", ticktext = list("I", "IIA", "IIB", "IIIA", "IIIB","IV"), tickvals = list(0, 1, 2, 3, 4, 5)))

This is what page 1 of the dashboard now looks like
And this is what page 2 of the dashboard now looks like png

Add Tabs to A FlexDashboard

  • If your Dashboard has a lot of content, you may also want to add tabs within pages to further layer the data presentation
  • Instead of using Column {data-width=350} above the dotted lines in your Flex DashBoard, use Column {.tabset}

PAGE 1: Age at Diagnosis of MCC ======================================================
### Chart A - Age at Diagnosis of MCC

dt <- read_excel("mcc_cohort_fake.xlsx") # Load the data
Age_at_Dx <- dt %>% select(record_id, age_at_dx) %>% drop_na(age_at_dx) # drop_na is a good function to eliminate rows that have missing values
Age_at_Dx$subjects <- "subjects" # add a column that unifies all the data (helpful for plotly)
Age_at_Dx %>% kable
plot_ly(data = Age_at_Dx, type = "box") %>%
  add_boxplot(x = Age_at_Dx$subjects, y = Age_at_Dx$age_at_dx,
              boxpoints = "all", jitter = 0.3, pointpos = -1.8,
              marker = list(color = 'rgb(7,40,89)'),
              line = list(color = 'rgb(7,40,89)'),
              color = I("steelblue4"),
              name = "MGH-HCC Cohort") %>%
  layout(title = "Age at Diagnosis of MCC")

PAGE 2: Staging of MCC ======================================================

Column {.tabset}
- - - - - - - - - - - - - - - -

### Chart B - Clinical Stage at Diagnosis of MCC

cStage <-dt %>% select(record_id, man_clinstage, man_pathstage) %>% drop_na(man_clinstage) %>% filter(man_clinstage < 98)
cStageDF <- cStage %>% group_by(man_clinstage) %>% tally()
plot_ly(data = cStageDF) %>%
  add_bars(x = cStageDF$man_clinstage, y = cStageDF$n,
           color = I("steelblue4")) %>%
  layout(
    title = "Clinical Stage at Presentation",
    yaxis = list(title = "Number of Subjects"),
    xaxis = list(title = "Clincal Stage", ticktext = list("I", "IIA", "IIB", "III", "IV"), tickvals = list(0, 1, 2, 3, 4)))

### Chart C - Pathological Stage at Diagnosis of MCC

pStage <-dt %>% select(record_id, man_clinstage, man_pathstage) %>% drop_na(man_pathstage) %>% filter(man_pathstage < 6)
pStageDF <- pStage %>% group_by(man_pathstage) %>% tally()
plot_ly(data = pStageDF) %>%
  add_bars(x = pStageDF$man_pathstage, y = pStageDF$n,
           color = I("steelblue4")) %>%
  layout(
    title = "Pathological Stage at Presentation",
    yaxis = list(title = "Number of Subjects"),
    xaxis = list(title = "Pathological Stage", ticktext = list("I", "IIA", "IIB", "IIIA", "IIIB","IV"), tickvals = list(0, 1, 2, 3, 4, 5)))

This is the rmd of the FlexDashboard with the green arrow highlighting this critical line of code


This is now what page 2 of the dashboard looks like

You will notice that the Clinical and Pathological Staging bar charts are no longer stacked in two rows on the same page. In contrast, you only see the Clinical Stage at Presentation graph, which takes up the entire page. You can see the tab in the upper left corner; if you click on the second tab, the chart for Pathological Stage at Presentation will emerge (see below).

Adding Side-by_Side Images Within a tabset Page

  • If you want to have a section that has multiple tabset pages, for example as seen here

and then you want one of those pages to have side-by-side images (e.g.), you can use the following strategy
* Create the two graphs you would like side-by-side
* Save them both as objects
* Then within the level three header ### (as above Bar Graphs of Staging), use cowplot::plot.grid(image1, image2) to execute that graph

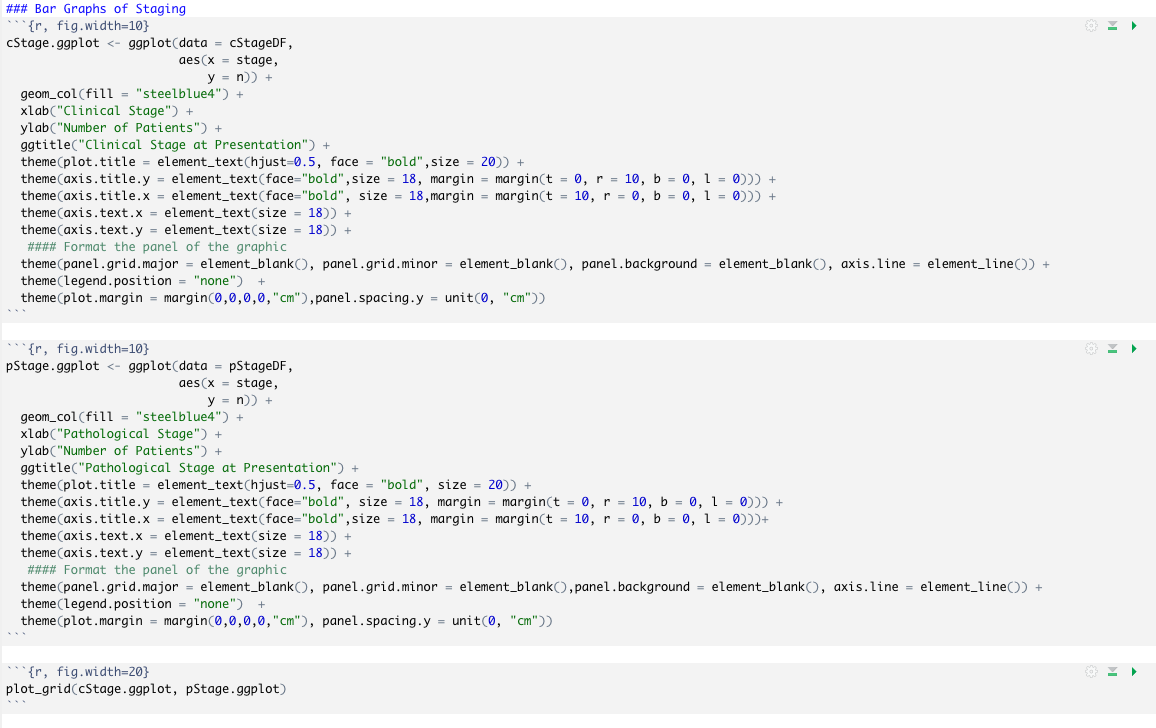

* For example, you can see the code we used here

Take Home Points

  • Dashboards are an excellent data visualization tool for Clinical and Translational Research
  • Flexdashboard is a great package to develop dashboards with R
  • Adding pages and tabs to your dashboard can create a richer user experience for your intended audience

As always, please reach out to us with thoughts and feedback

Session Info

sessionInfo()
R version 4.2.0 (2022-04-22)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur/Monterey 10.16

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] cowplot_1.1.1       scales_1.2.1        readxl_1.4.1
 [4] plotly_4.10.1.9000  knitr_1.41          forcats_0.5.2
 [7] stringr_1.5.0       dplyr_1.0.10        purrr_0.3.5
[10] readr_2.1.3         tidyr_1.2.1         tibble_3.1.8
[13] ggplot2_3.4.0       tidyverse_1.3.2     httr_1.4.4
[16] REDCapR_1.0.0       RCurl_1.98-1.7      flexdashboard_0.5.2

loaded via a namespace (and not attached):
 [1] svglite_2.1.0       lubridate_1.9.0     assertthat_0.2.1
 [4] digest_0.6.30       utf8_1.2.2          R6_2.5.1
 [7] cellranger_1.1.0    backports_1.4.1     reprex_2.0.2
[10] evaluate_0.18       highr_0.9           pillar_1.8.1
[13] rlang_1.0.6         lazyeval_0.2.2      googlesheets4_1.0.1
[16] data.table_1.14.6   rstudioapi_0.14     rmarkdown_2.18
[19] webshot_0.5.3       googledrive_2.0.0   htmlwidgets_1.5.4
[22] munsell_0.5.0       broom_1.0.1         compiler_4.2.0
[25] modelr_0.1.10       xfun_0.35           systemfonts_1.0.4
[28] pkgconfig_2.0.3     htmltools_0.5.3     tidyselect_1.2.0
[31] viridisLite_0.4.1   fansi_1.0.3         crayon_1.5.2
[34] tzdb_0.3.0          dbplyr_2.2.1        withr_2.5.0
[37] bitops_1.0-7        grid_4.2.0          jsonlite_1.8.4
[40] gtable_0.3.1        lifecycle_1.0.3     DBI_1.1.3
[43] magrittr_2.0.3      cli_3.4.1           stringi_1.7.8
[46] fs_1.5.2            xml2_1.3.3          ellipsis_0.3.2
[49] generics_0.1.3      vctrs_0.5.1         kableExtra_1.3.4
[52] tools_4.2.0         glue_1.6.2          hms_1.1.2
[55] fastmap_1.1.0       yaml_2.3.6          timechange_0.1.1
[58] colorspace_2.0-3    gargle_1.2.1        rvest_1.0.3
[61] haven_2.5.1
